Disaster recovery, also called DR, is the strategy and processes implemented to restore applications, services, and data after a disruption such as a hardware failure or a network issue. AWS enables business continuity by minimizing downtime of the application and data loss, such as user information, by using its overall infrastructure and scalable services, such as cross-region replication of databases.

DR in AWS ensures that your applications stay operational or can be quickly restored if something goes wrong. It helps meet two critical goals: Recovery Time Objective and Recovery Point Objective. RTO is the amount of time it takes to get your application up and running again after an issue. RPO is how much data you can afford to lose or how far back you need to restore the data to avoid major problems.

AWS Tools and Services for Disaster Recovery

In this section, we will look at how AWS tools and services help keep your applications and user data safe, ensuring they stay up and running even if issues like hardware failures, network disruptions, or natural disasters occur.

1. Amazon RDS

Relational Database Service, also called RDS, supports Multi-AZ deployments, enabling automatic failover to a backup copy of your main database located in a different availability zone, also called the secondary instance, in case of disruptions. Cross-region replicas add another layer of resilience by replicating data to different geographic locations.

A technical services company might use a database to track client orders. RDS Multi-AZ helps by keeping a backup of the database in the same region so it's always available. Cross-region replicas take it a step further by copying the data to another region, protecting it in case something goes wrong in the original region.

2. Amazon S3

Amazon Simple Storage Service, also called Amazon S3, is designed for 99.999999999% durability. It offers features like keeping older versions of files, copying data to different locations, and automatically moving data to cheaper storage when it's not needed as often.

For example, a tech company that stores large amounts of software code and customer data in S3 can use cross-region replication. This ensures the data is still accessible, even if a data center in one region goes down.

3. Amazon DynamoDB

DynamoDB provides global tables that replicate data across different regions in real time. This ensures that data can be accessed quickly and reliably, no matter where users are located.

For example, a software company with users in different parts of the world might use DynamoDB global tables to make sure their users can access app data quickly, even if there's a problem in one region. This helps avoid delays and keeps the app running smoothly for everyone.

4. Amazon Aurora

Aurora automatically creates six copies of your data across three different Availability Zones to keep it safe. It also supports copying data to different regions, which helps with fast access to data and recovery in case of a disaster.

For example, a tech company hosting a customer database on Aurora can use cross-region replication to ensure that if something goes wrong in one region, the database will quickly switch to another region without affecting the service. This ensures smooth operations even during regional issues.

Different Types of Data Replication Strategies in AWS RDS

AWS RDS supports multiple ways to replicate data, each designed to meet different needs for keeping data safe and available. These methods include asynchronous replication, where data is copied with a slight delay; synchronous replication, where data is copied instantly; and hybrid replication, which combines both approaches. These strategies help ensure your data is durable, always available and can be recovered quickly

Asynchronous Replication

In asynchronous replication, changes made to the main database are not instantly copied to the backup databases. Instead, the backup databases receive the updates after a short delay, causing a slight difference in time between the main database and its copies.

Some of its use cases are:

• Use cases requiring cross-region disaster recovery.
• Applications where read scalability is more important than real-time consistency.
• Systems tolerant of minor replication lag, such as reporting or analytics databases.

For example, a global e-commerce platform may use Amazon RDS with Cross-Region Read Replicas to replicate data from its primary US database to regions in Europe and Asia, ensuring low-latency access for international users.

The major benefits of using asynchronous replication are:

• It enables cross-region replication for disaster recovery.
• It improves read scalability by offloading read operations to replicas.
• It is cost-effective compared to synchronous methods.

The major downsides of asynchronous replication are:

• Not suitable for write-heavy applications needing real-time consistency.
• Replication lag can result in stale data on replicas.

Synchronous Replication

In synchronous replication, updates to the primary database are simultaneously applied to the secondary instance. This ensures that data on both instances is always consistent.

Some of its use cases are:

• Applications requiring high availability and real-time consistency.
• Systems with a low tolerance for data loss, such as financial transaction systems.

For example, financial services applications may use Amazon RDS Multi-AZ Deployment, ensuring seamless failover to a standby instance in case of primary database failure.

The major benefits of using synchronous replication are:

• Guarantees data consistency between primary and standby instances.
• Automatic failover minimizes downtime during outages.
• No manual intervention is required for failover.

The major downsides of using synchronous replication are:

• Limited to the same AWS region.
• Higher cost due to synchronous data replication and standby instances.
• Slight increase in write latency due to synchronous operations.

Hybrid Replication

Hybrid replication combines synchronous replication for high availability within a region and asynchronous replication for disaster recovery across regions.

Some of its suitable use cases are:

• Applications need both real-time consistency in a primary region and geographic redundancy for disaster recovery.
• Critical workloads require the highest level of fault tolerance.

For example, a healthcare provider may implement Amazon RDS Multi-AZ Deployment for real-time failover within the US East region while using Cross-Region Read Replicas for disaster recovery in Europe.

The major benefits of using hybrid replication are:

• Balances high availability with disaster recovery.
• Supports both real-time consistency and global redundancy.
• Ideal for mission-critical applications.

The major downsides of using hybrid replication are:

• Complex setup and maintenance.
• Higher costs compared to other strategies.
• Requires careful monitoring to balance synchronous and asynchronous replication.

Here’s a quick comparison of replication strategies:

Having discussed all three strategies for data replication, let’s determine which one is best suited for your cloud infrastructure.

Selecting the Right Data Replication Strategy

Not all replication methods are the same, and choosing the right one depends on what your application needs. Before setting things up, it's important to consider factors like how quickly you need to recover, how much it will cost, and any legal or industry rules you need to follow. This helps make sure your replication method works well and makes sense for your situation.

Recovery Point Objective and Recovery Time Objective

The Recovery Point Objective (RPO) is the most data you can afford to lose during a disaster, while the Recovery Time Objective (RTO) is how quickly your critical systems need to be back up and running after an outage. For a tech company running an online service, the RPO might be very small, meaning they can't lose any customer data, and the RTO might be just a few minutes, so the system comes back online quickly. In this case, synchronous replication, like RDS Multi-AZ, is the best choice because it keeps the data in sync and minimizes downtime.

Cost Considerations

Synchronous replication, like with AWS services such as Aurora Global Database, can be more expensive because it keeps data consistent in real time and uses more network resources. On the other hand, asynchronous replication, like RDS Cross-Region Read Replicas, is cheaper because it copies data at intervals, but this might lead to a small amount of data loss. For example, a startup might choose asynchronous replication to save money while still making sure their data is available across different locations.

Latency and Network Bandwidth Constraints

Latency, or the delay in data transfer, can have a big impact on how users experience your app and how well the system performs. Synchronous replication can increase latency because it keeps data synced in real time across different regions. Network bandwidth, which is the amount of data that can be transferred at once, affects both the cost and performance of the system. High-traffic applications may need to carefully track this replication traffic. For example, a tech company running a social media platform might use DynamoDB Global Tables to keep data copies close to users in different areas, reducing delays and improving performance.

Compliance and Data Residency Requirements

Industries like healthcare, finance, and government often have strict rules about where and how data can be stored and accessed, such as HIPAA, which protects patient health information, and GDPR, which protects personal data for people in the European Union. These rules may require data to stay within certain regions, which can affect how data is replicated. For example, a tech company managing sensitive customer information might use Amazon RDS Multi-AZ within the same region to keep the data safe, meet legal requirements, and ensure the system stays available if something goes wrong.

Choosing the right disaster recovery strategy depends on factors like how quickly you need to recover, how much data you can afford to lose, and the legal requirements for your industry. By considering these needs, you can select an approach that ensures your data stays safe, available, and compliant while also keeping costs manageable. Now, let's take a closer look at how to set up data replication in AWS and walk through the steps to implement it for your application.

Implementing Data Replication in AWS

Let's go through a simple example of setting up data replication in AWS. In this guide, we'll create an Amazon RDS database, set it up to copy data to another region, and check if the backup database can take over if something goes wrong.

Imagine you're running a tech company with a web application hosted in AWS's US-East-2 region, and you want to ensure your user data is protected in case of any issues. You decide to copy your RDS database to the us-west-1 region as a backup. This way, if something happens to the main database, the backup database can take over. Here's how you can do this step by step:

Step 1: Launch a Primary Database Instance in Amazon RDS

Navigate to RDS in AWS Console and select Create Database.

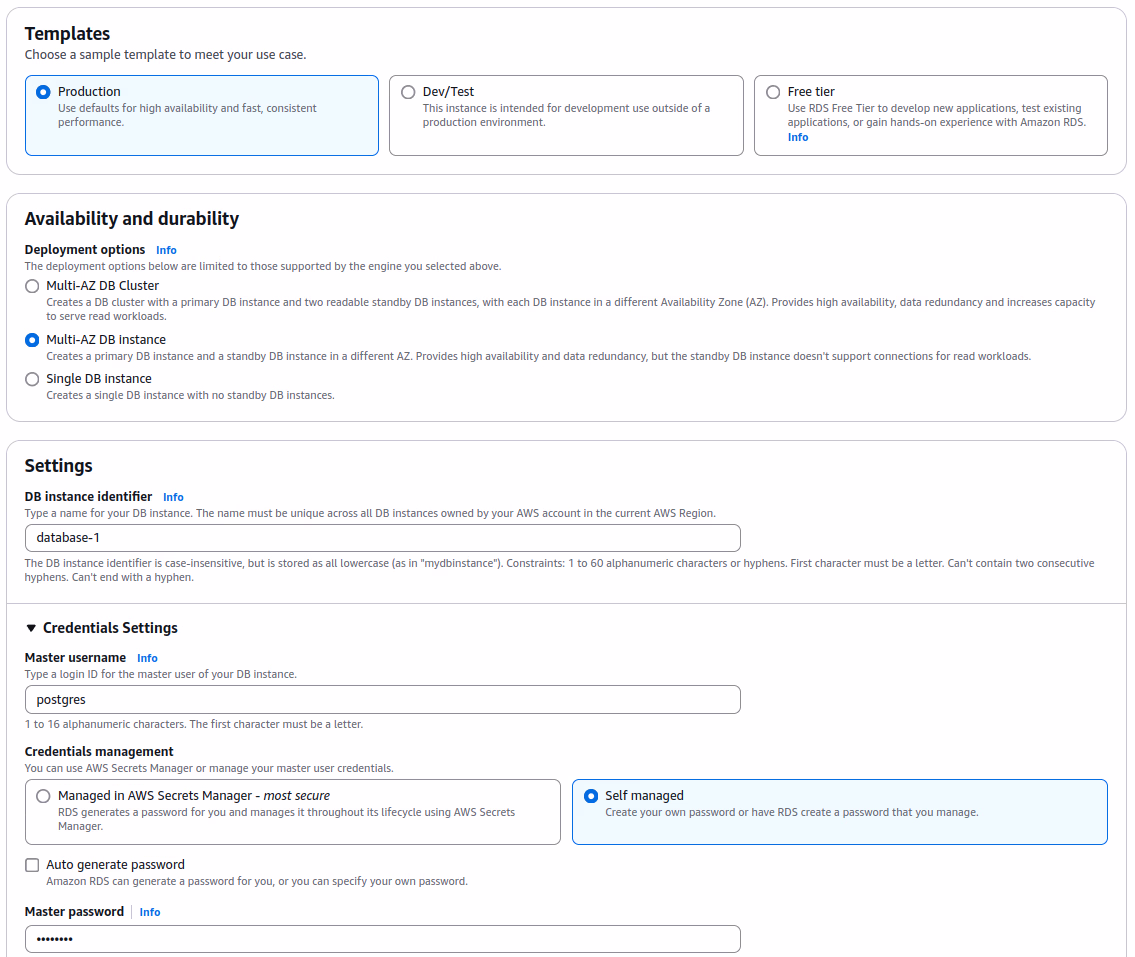

First, select the database engine you want to use, such as PostgreSQL. Then, choose the Production option to enable high-availability features. Next, pick an appropriate instance type, like db.m5.xlarge, based on your performance needs. Specify the storage size you require and enable Storage Auto Scaling to automatically adjust storage as your data grows. To ensure high availability within the same region, enable Multi-AZ deployment. Finally, configure your database by setting the database name, along with the username and password for access.

Click Create Database and wait for the database to become available.

Step 2: Configure Cross-Region Replication

Once your primary database is created, go to the Databases page in the RDS console. Select the new database you just set up. In the Actions menu, choose “Create read replica”.

Next, pick the secondary region where you want to copy your data, like us-west-1. Choose the same or a similar instance type for the backup. Make sure the primary database is selected.

Finally, click “Create read replica” and wait for it to be set up.

Step 3: Test Failover by Promoting the Secondary Database as the Primary

Navigate to the Databases page and select the read replica in the secondary region.

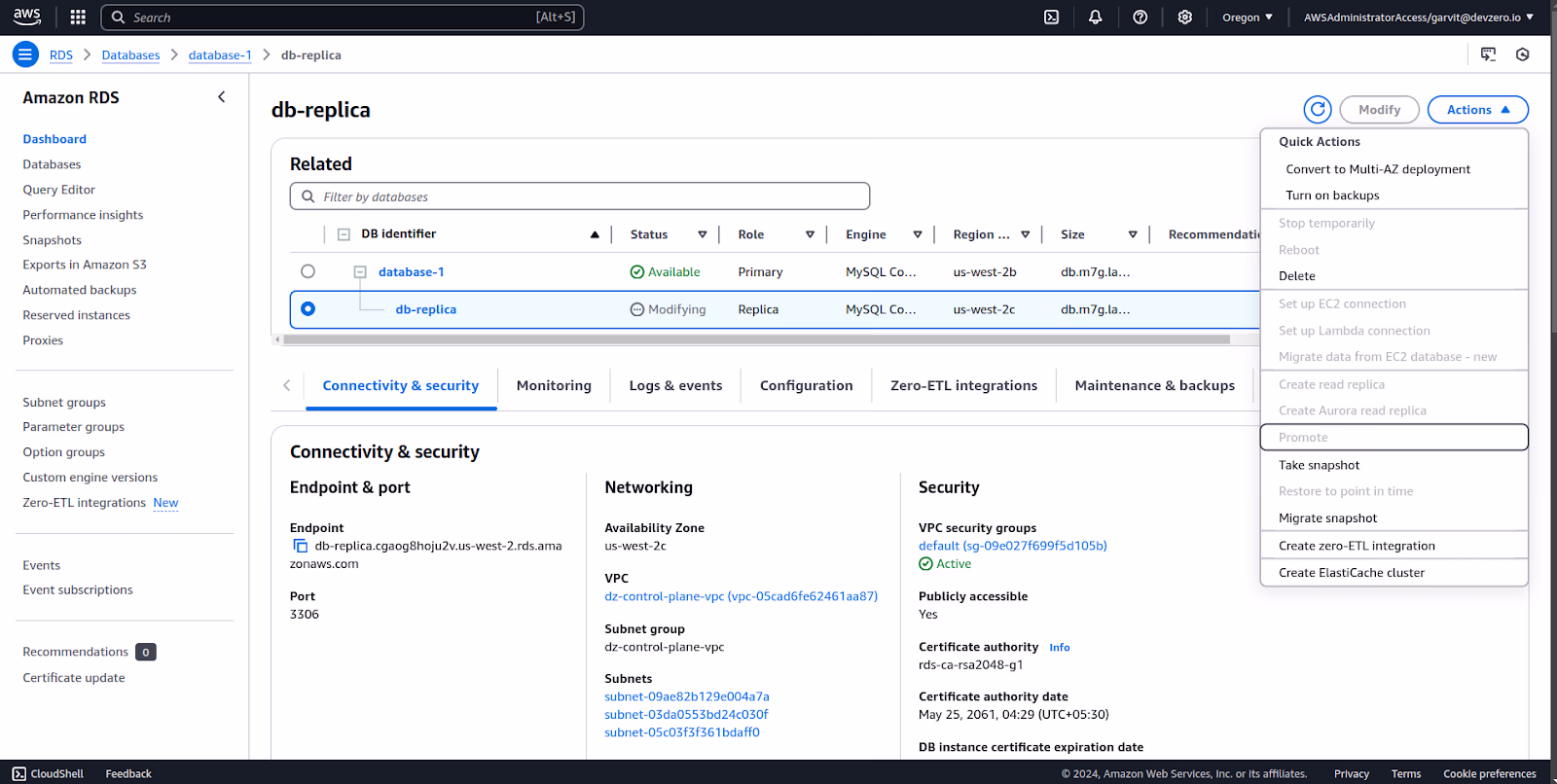

In the Actions dropdown, choose Promote read replica. Confirm the promotion to make the read replica a standalone database. This ensures it can serve as the primary database if needed.

Update your application or DNS records to point to the new primary database.

Connect to the new primary database, the replica that took over using your database tool, or the AWS CLI to check that all your data is there and matches the original database. This ensures everything is working correctly after the failover.

With these steps, you’ve successfully implemented cross-region replication for disaster recovery in AWS. In the next section, we’ll explore best practices to ensure the reliability of your replication strategy.

Best Practices for Data Replication

Setting up data replication is just the beginning. To make sure it continues to work well, you need to follow best practices. These practices help reduce risks, improve performance, and ensure your system meets security and compliance requirements. For example, regularly monitoring your disaster recovery procedures, testing failovers, and keeping backups up to date are important steps to ensure your setup remains reliable and efficient in the long run.

• Regularly Testing Disaster Recovery Plans: Disaster recovery plans are only as good as their execution during an actual outage, like if the database goes down unexpectedly. Regularly simulate disaster scenarios to test the failover process and ensure that the secondary database can seamlessly take over. For example, schedule quarterly failover drills where the read replica is promoted to primary and the application is redirected. Document any issues during the test and update processes to close gaps.
• Automating Replication and Failover Processes: It can help avoid delays and mistakes during an outage. Instead of doing everything manually, you can use AWS tools like Lambda and Step Functions to handle the failover and recovery automatically. For example, you can create a Lambda function that monitors the primary database for any issues. If a problem is detected, the function can automatically switch to the backup database without anyone needing to step in. This speeds up recovery, reduces the chance of human error, and ensures that your disaster recovery process is consistent every time.
• Ensuring Security of Replicated Data: AWS Key Management Service can help by encrypting the data stored in both your primary and backup databases, making sure it’s protected from unauthorized access. To keep data safe while it's being transferred between databases, you should also encrypt the replication traffic using Transport Layer Security. Additionally, make sure only authorized team members or applications can access the databases and replication settings by setting up strict permissions with AWS Identity and Access Management. This ensures that only the right people can make changes or view sensitive data.
• Monitoring and Alerting for Replication Issues: You can use Amazon CloudWatch to track key metrics like replication lag which is the time it takes for data to be copied from the primary to the backup database. If the lag gets too high or replication stops working, you should have alerts set up to notify your disaster recovery team right away. For example, you can set up an alert that sends a notification through Amazon SNS (Simple Notification Service) if the replication lag for a Cross-Region Read Replica goes over 5 minutes. This way, your team can quickly investigate the problem and fix it before it affects your application.

By following these best practices, you can enhance the reliability and security of your data replication setup, ensuring that your disaster recovery plans remain ready for any unexpected events like network interruptions or hardware failures.

Disaster Recovery with Firefly

When managing a cloud environment, having a clear inventory of resources and an efficient disaster recovery process is important. Firefly offers a platform that not only helps you track your infrastructure but also simplifies replication and compliance across multiple cloud providers.

Firefly simplifies disaster recovery with tools that automate backups, support multi-cloud disaster recovery solutions, and ensure compliance:

Backing Up AWS Resources

Firefly integrates with AWS to automate EBS snapshots, making it easy to back up your data. For example, you can schedule daily snapshots of your production volumes and use these snapshots to restore instances in case of failure.

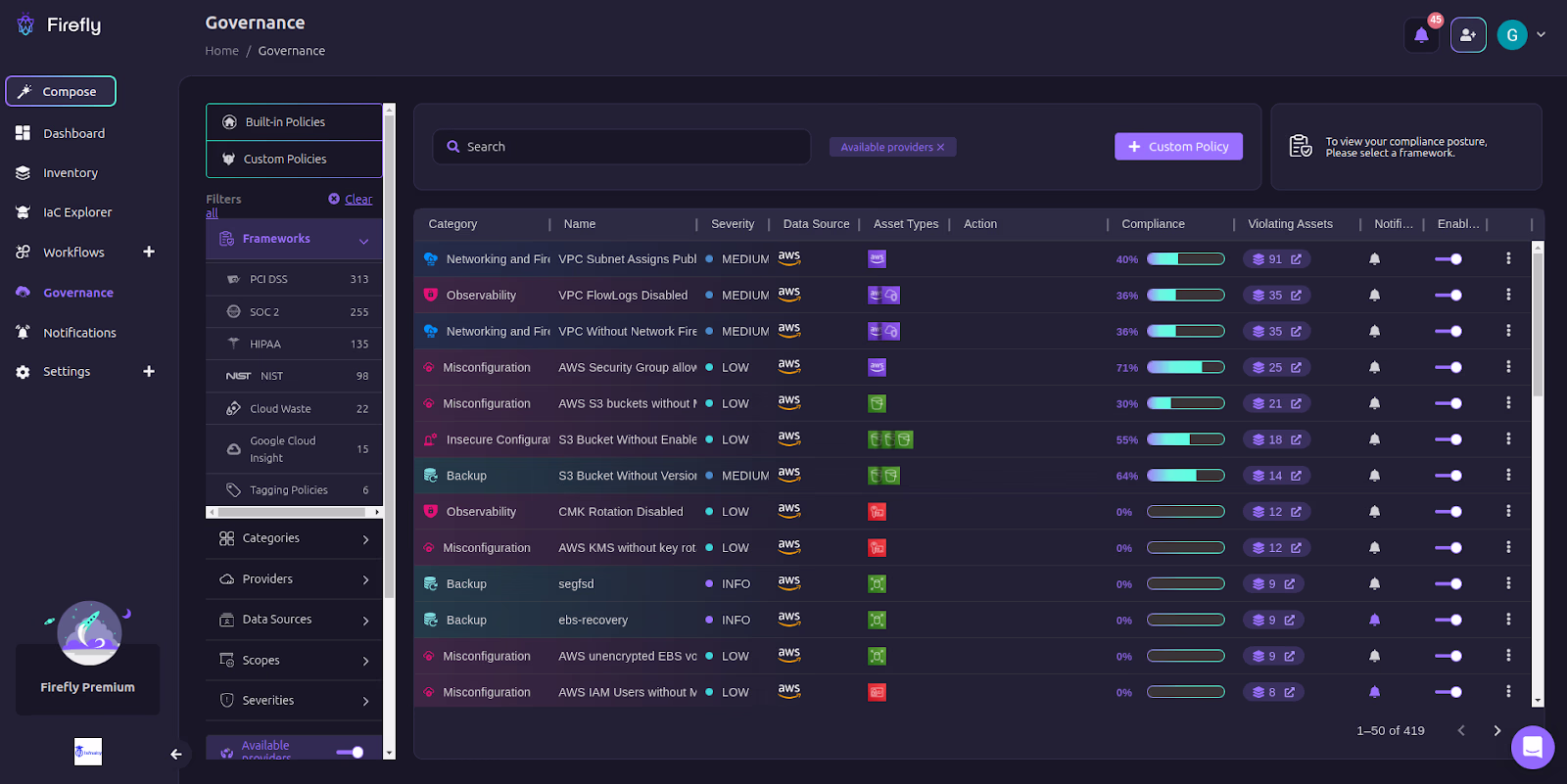

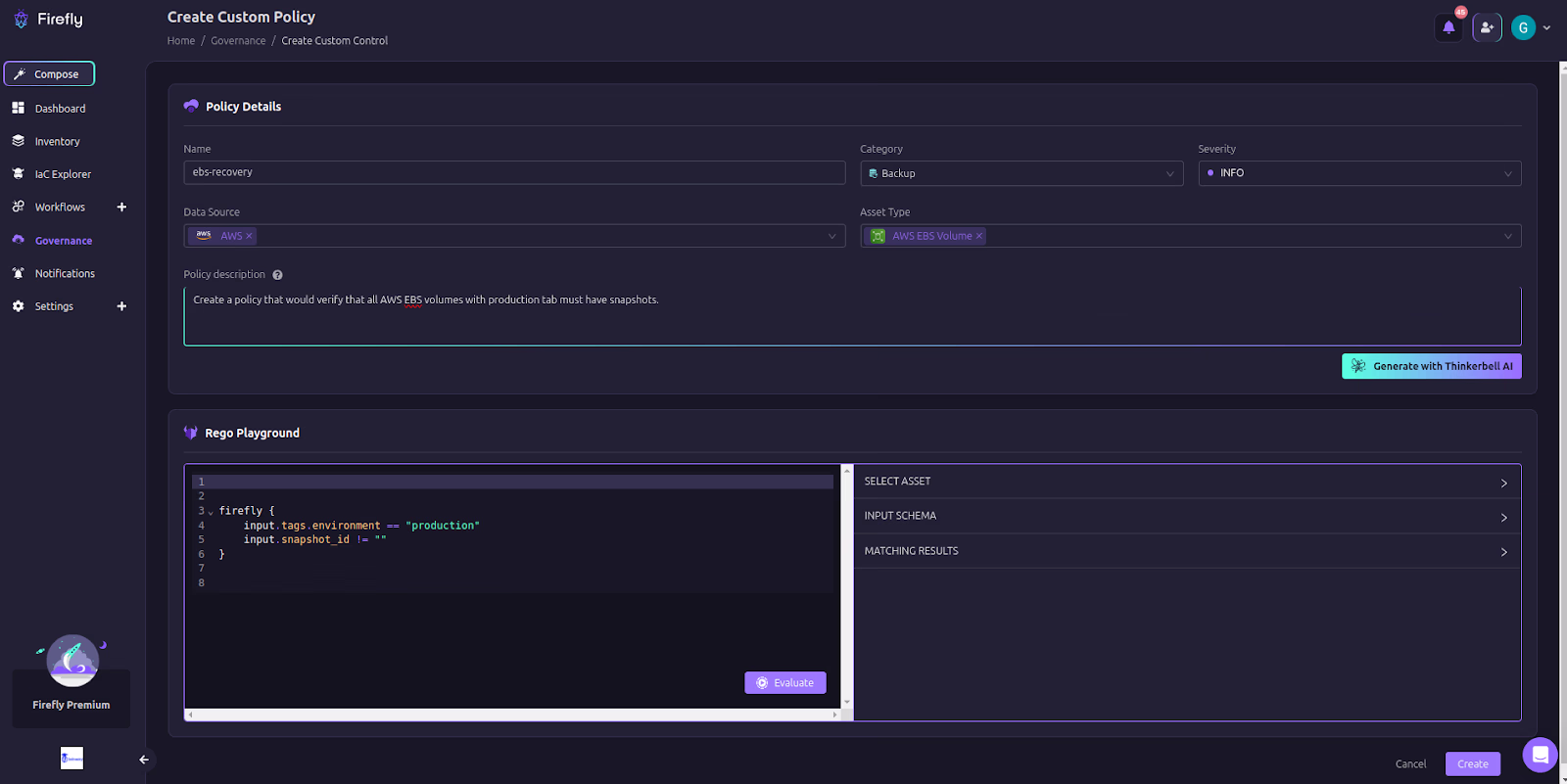

Log in to the Web UI of Firefly and go to the Governance tab. You can create a custom Policy-as-Code to alert you if there is no proper snapshot for resources such as AWS EBS volumes.

You can also use Tinkerbell AI, which is integrated with Firefly, to easily create custom policies for you in rego.

Codify and Replicate Resources

Firefly’s Resources page allows you to codify your resources as Infrastructure-as-Code (IaC). This codification serves as a blueprint that can be reused to replicate resources across environments or regions. This approach eliminates replication errors and ensures consistency across environments.

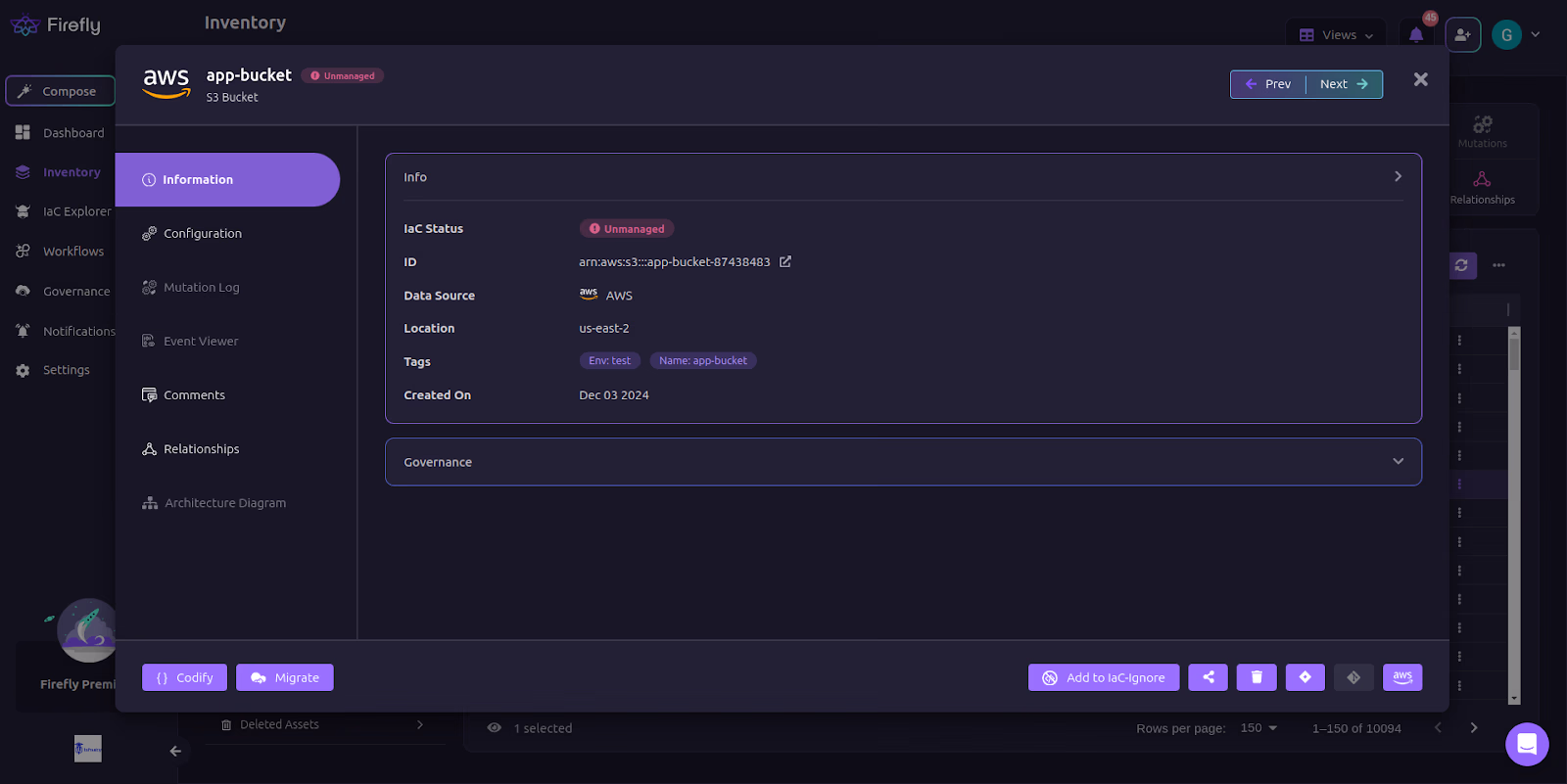

In the Inventory of Firefly, select the resource you want to replicate.

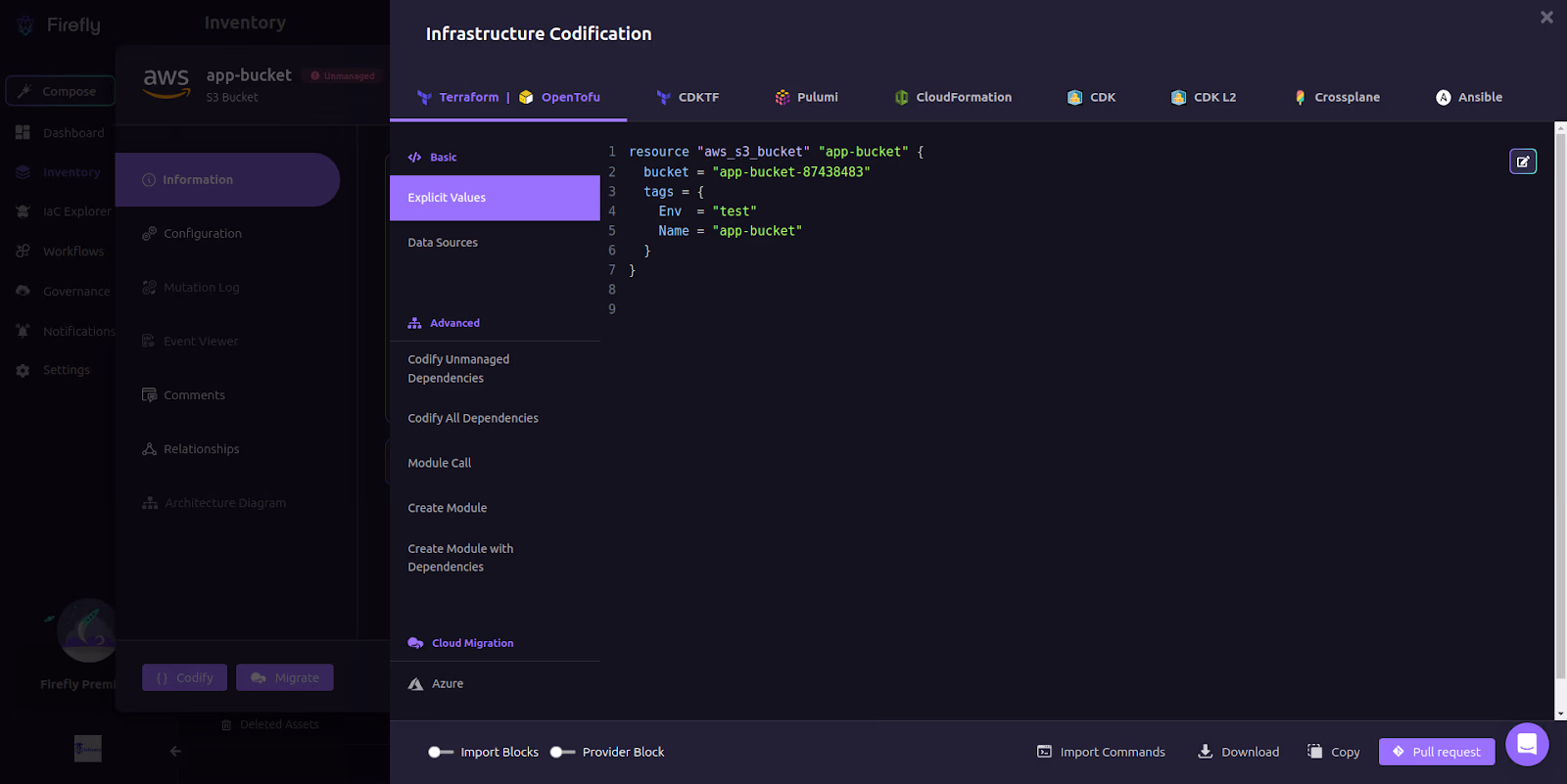

Click on codify at the bottom left to get its IaC configuration in various languages such as Terraform, Pulumi, and CloudFormation.

With Firefly, you can ensure that your data is always protected and ready for recovery. Whether it’s handling unexpected failures or meeting compliance requirements, Firefly makes it easy to manage backups and keep your infrastructure secure. With the added help of Tinkerbell AI for creating policies, you can focus more on your applications and less on backup tasks, knowing your data is safe and your disaster recovery plan is always up to date.
